FTTB Waterproof Fiber Optic Terminal Box SC IP68 2 IN 2OUT 48Core 16Port

Hunan Foconnec Technology Co., Limited
Contact Now

FTTB Waterproof Fiber Optic Terminal Box SC IP68 2 IN 2OUT 48Core 16Port

Brand Name : Twilight Optic

Model Number : TW-FOSC-M33

Place of Origin : China

MOQ : Negotiate

Price : Negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/day

Delivery Time : 3-8 work days

Packaging Details : 10 pcs/ Carton, Size:59x33x51cm, G/W:20KG

Name : 2in 2out 16Port 48Core Terminal Box Splice Closure With Waterproof Sealing

Use : FTTH FTTX FTTB

Outlet ports : 16Port, 2 IN-2OUT

Sealing Method : Mechanical and Heat-shrinkable Seals

IP Degree : IP68

Material : Dome and base : Modified P.P +GF Tray: ABS

Atmospheric Pressure : 70-150Kpa

Working Temperature : -40℃ - +70℃

Contact Now

48Core 16Port Fiber Optic Terminal Box With HUAWEI MINI SC IP68 2 IN-2OUT



Description

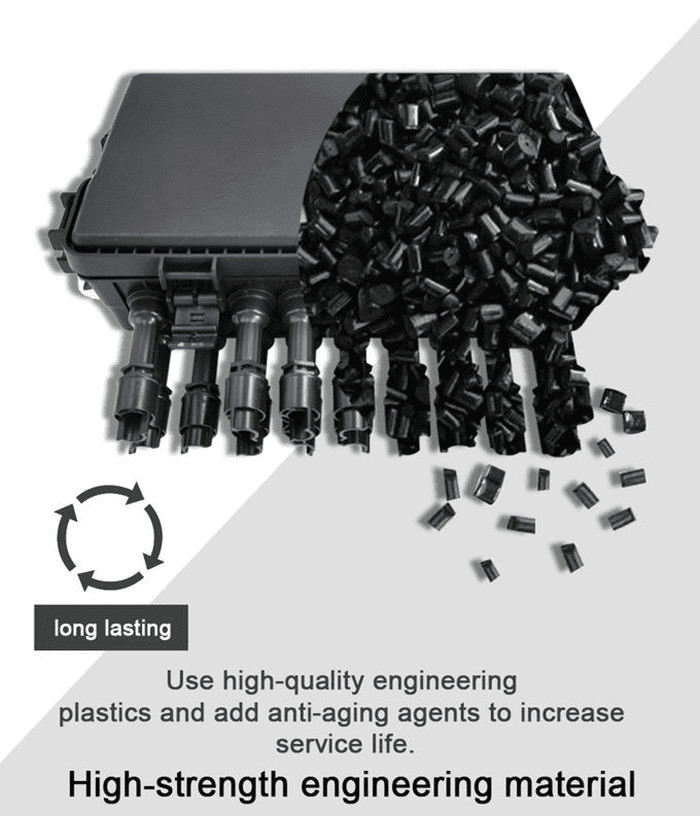

FOSC400M33 fiber optic splice closures are specially designed to protect joints of optic cable. Excessive fibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. One tray can splice 24 fibers; Available for 2 trays to splice total 48fibers. Adopt modified PP material, with anti-UV, anti-aging and corrosion resistance material. Good quality and long service life. It is reusable.




 Name



 2in 2out 16Port 48Core Terminal Box Splice Closure With Waterproof Sealing



 Use



 FTTH FTTX FTTB



 Outlet ports



 16Port, 2 IN-2OUT



 Sealing Method



 Mechanical and Heat-shrinkable Seals



 IP Degree



 IP68



 Material



 Dome and base : Modified P.P +GF Tray: ABS



 Suitable Adapter



 SC/LC/FC/ST



 Fiber Type



 SM/MM (OM1, OM2, OM3, OM4)



 Working Temperature



 -40℃ - +70℃



 Atmospheric Pressure



 70-150Kpa





Features



►  Excessive fibers can be stored in storage baskets. Easy in fiber management.

►  Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.

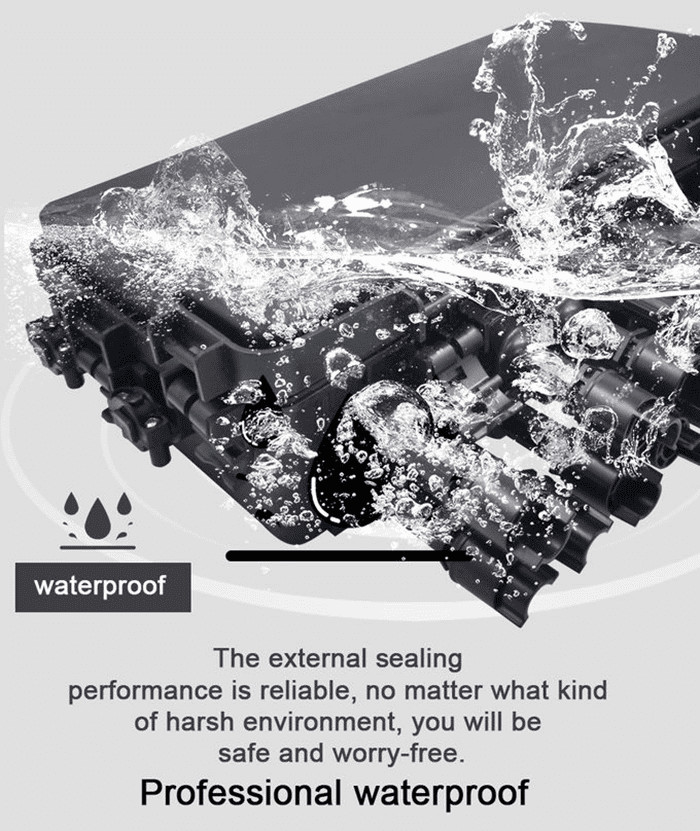

►  Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.

►   The splice trays are hinged for access to any splice tray, without disturbing other trays.

►  The inner parts and fixing parts are made of stainless steel.

►  With a earthing device protect it from damage by lightning.

►  Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, handhole, manhole)and in many applications (tap-off, expressed, branch, and repair).


Application

►  It can be installed in aerial locations, ducted applications, direct buried, manholes.

 Small volume but large capacity.


Technical Parameter

  Working Temperature: -40 degrees centigrade~+70 degrees centigrade

  Atmospheric Pressure: 70~150Kpa

►  Axial Tension: >2000N/1min

►  Stretching Resistance: 2500N/10 square centimetre(1min)

  Insulation resistance: >2*104MΩ

  Voltage Strength: 15KV/1min, no arcover or breakdown

  Pressure in the water: 50m/72hours

►  Splice tray with optical taking-in radius: 30mm. Low optical loss.


Configuration




Material



Dome and Base: Modified P.P+GF
Tray: ABS

Dimension (mm)

359*277*120



Weight(kg)


1.8



Color


Black



Sealing Method


Mechanical and Heat-shrinkable Seals



Mount Type


Aerial/Buried/Wall-mount/Pole-mount

Entry Port Diameter

2 inlets and 2 outlets <25mm
16round ports for drop cable



Tray


2



Tray Capacity


24



Total Capacity (Fibers)


48





Details Picture





FTTB Waterproof Fiber Optic Terminal Box SC IP68 2 IN 2OUT 48Core 16Port





FTTB Waterproof Fiber Optic Terminal Box SC IP68 2 IN 2OUT 48Core 16Port

FTTB Waterproof Fiber Optic Terminal Box SC IP68 2 IN 2OUT 48Core 16Port

FTTB Waterproof Fiber Optic Terminal Box SC IP68 2 IN 2OUT 48Core 16Port

FTTB Waterproof Fiber Optic Terminal Box SC IP68 2 IN 2OUT 48Core 16Port

FTTB Waterproof Fiber Optic Terminal Box SC IP68 2 IN 2OUT 48Core 16Port





Packaging Details



FTTB Waterproof Fiber Optic Terminal Box SC IP68 2 IN 2OUT 48Core 16Port
