24Port Fiber Optic Enclosure Wall Mount / Pole Mount APC / UPC FTTB

Brand Name : Twilight Optic

Model Number : TW-FAT-24C-A

Place of Origin : China

MOQ : Negotiate

Price : Negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/day

Delivery Time : 3-8 work days

Packaging Details : 10 pcs/ Carton, Size:56x36x61cm, G/W:21KG

Name : Fiber Optical FTB Distribution Enclosure

Use : FTTH FTTX FTTB

Fiber bend radius : More than 40mm

Network : 3G, 4g, Wired LAN, Wireless Lan

Suitable Adapter : SC/LC/ST/FC

Ferrule End-face : APC/UPC

Material : PC+ABS

Size : 340*250*110mm

Contact Now

24Port Fiber Optic Distribution Enclosure SC/LC/ST/FC APC/UPC Wall/Pole Mount

Description


FAT-24C-A fiber access termination box is able to hold up to 24 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Name Fiber Optical FTB Distribution Enclosure
Use FTTH FTTX FTTB
Fiber bend radius More than 40mm
Network                                   3G, 4g, Wired LAN, Wireless Lan
Suitable Adapter SC/LC/ST/FC
Ferrule End-face APC/UPC
Material PC+ABS
Size 340*250*110mm
Color Black
Waterproof IP-66 Protection Level




Features

► Water-proof design with IP-66 Protection level.

► Integrated with splice cassette and cable management rods.

► Manage fibers in a reasonable fiber radius condition.

► Easy to maintain and extend the capacity.

► Fiber bend radius control more than 40mm.

► Suitable for the fusion splice or mechanical splice.

► 1*16 Splitter can be installed as an option.

► Efficient cable management.

► 24 ports cable entrance for drop cable.


Configuration

Material Size Max Capacity   Installation Size Weight Color
PC+ABS
A*B*C(mm)
340*250*110
SC
24 Ports
PLC
1x16(SC)
D*E(mm)
154*82
1.5kg
 Black




24Port Fiber Optic Enclosure Wall Mount / Pole Mount APC / UPC FTTB

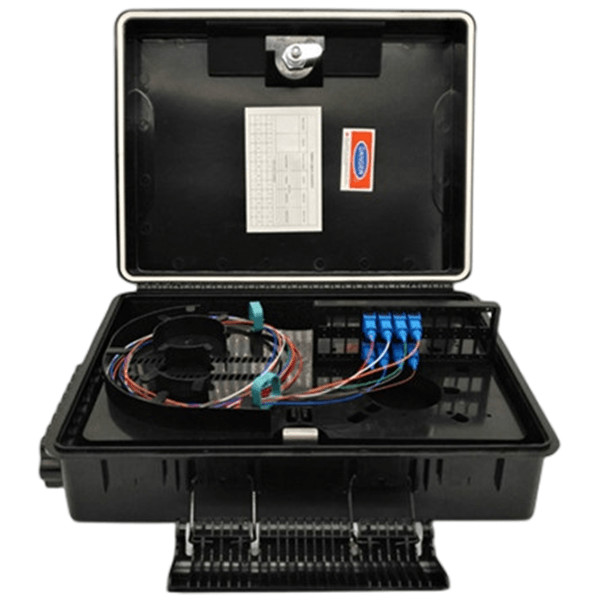

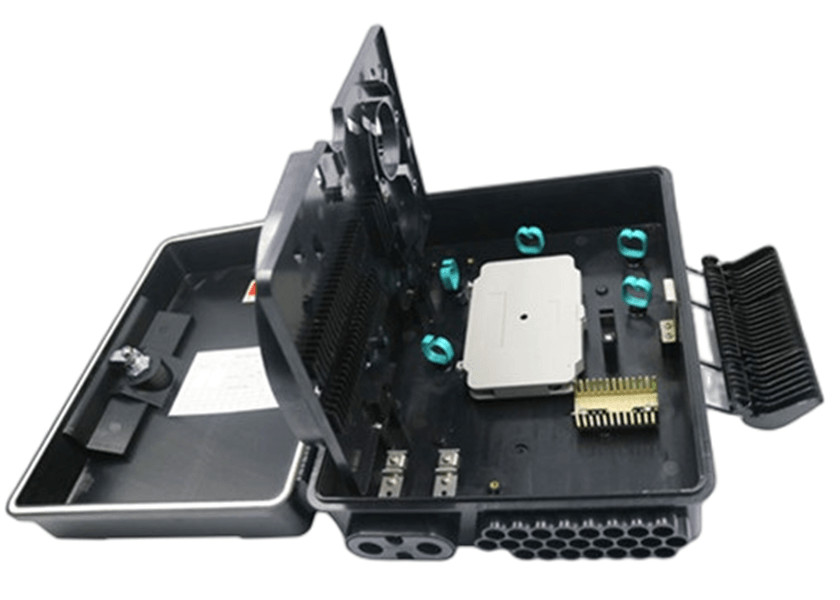

Details Picture





24Port Fiber Optic Enclosure Wall Mount / Pole Mount APC / UPC FTTB

24Port Fiber Optic Enclosure Wall Mount / Pole Mount APC / UPC FTTB

24Port Fiber Optic Enclosure Wall Mount / Pole Mount APC / UPC FTTB

24Port Fiber Optic Enclosure Wall Mount / Pole Mount APC / UPC FTTB
